1. Introduction

With the continuous upgrading of urbanization and industrialization, the requirements for indoor air quality, energy conservation, and environmental protection in buildings are increasing, which puts forward higher requirements for the performance and quality of ventilation systems. As the core component of the ventilation system, air ducts are responsible for the transmission and distribution of air, and their structural design and performance directly affect the operational efficiency of the entire system, indoor thermal comfort, and energy consumption levels. Traditional rectangular ducts, which have been widely used in the past, have inherent defects such as complex fabrication, poor air tightness, high air resistance, and easy deformation, which can no longer meet the needs of modern ventilation systems for high efficiency, energy conservation, and long service life.

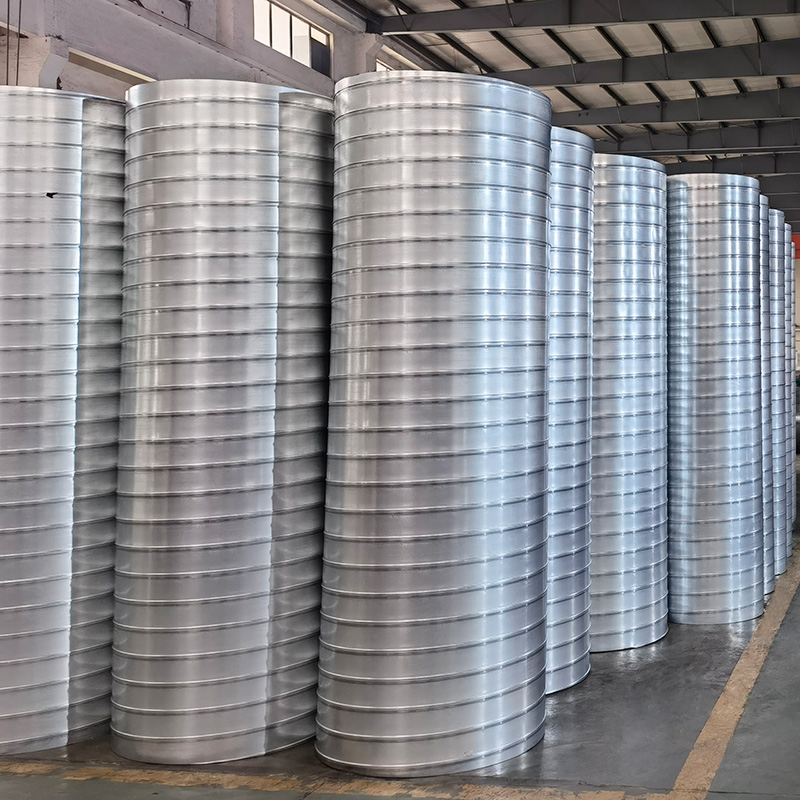

Spiral ducts, developed on the basis of advanced cold-rolled forming technology, are made of metal sheets (such as galvanized steel, stainless steel, aluminum) through continuous spiral forming and locking. Compared with traditional rectangular ducts, spiral ducts have significant advantages in structural strength, air tightness, air flow performance, and installation efficiency, and have gradually become the preferred duct type in modern ventilation engineering. In recent years, with the continuous improvement of processing technology and the popularization of energy-saving concepts, spiral ducts have been widely applied in various fields, including commercial complexes, industrial plants, hospitals, airports, and residential communities, showing broad application prospects.

Against this background, this paper focuses on spiral ducts as the core choice of modern ventilation systems, systematically sorts out their technical characteristics, core advantages, and application scenarios, compares their performance with traditional ducts, and discusses the key points of selection and maintenance. This paper aims to help relevant practitioners fully understand the value of spiral ducts, standardize their application in engineering practice, and promote the sustainable development of modern ventilation systems towards energy-saving, efficient, and intelligent directions.

2. Technical Characteristics of Spiral Ducts

Spiral ducts are distinguished from traditional rectangular ducts by their unique processing technology and structural design, which endow them with excellent comprehensive performance. The core technical characteristics of spiral ducts are mainly reflected in the aspects of forming technology, structural design, and material application, which lay the foundation for their advantages in performance and application.

2.1 Forming Technology

Spiral ducts are formed by continuous spiral rolling and locking of metal sheets through professional spiral duct forming machines. The forming process is highly automated, with high processing precision and stable product quality. The key technical points of the forming process are as follows: the metal sheet is uncoiled, leveled, and then rolled into a spiral shape through a forming die, and the adjacent edges are locked by a special locking structure (such as snap-lock or seamed lock), forming a seamless or semi-seamless circular duct. The forming process does not require welding or riveting, which avoids the defects of weld seam leakage and structural weakness caused by traditional welding processes. At the same time, the automated forming process ensures that the diameter, wall thickness, and spiral pitch of the duct are uniform, with a dimensional error of no more than ±0.5mm, which is far higher than the processing precision of traditional rectangular ducts.

2.2 Structural Design

The cross-sectional shape of spiral ducts is mostly circular, which is fundamentally different from the rectangular cross-section of traditional ducts. The circular structure has the characteristics of uniform force, high structural rigidity, and low air resistance. The spiral locking structure of the duct wall not only enhances the structural strength of the duct but also improves the air tightness of the duct. Compared with rectangular ducts, which are prone to deformation at the corners, spiral ducts have strong resistance to external pressure and internal negative pressure, and are not easy to deform even under high-pressure operation. In addition, the length of spiral ducts can be customized according to engineering needs (usually up to 12m per section), which reduces the number of joints between duct sections and further improves the air tightness and structural stability of the system.

2.3 Material Application

Spiral ducts can be made of a variety of metal materials according to different application environments and performance requirements, including galvanized steel, stainless steel, aluminum, and colored steel. Galvanized steel spiral ducts are the most widely used, with the advantages of low cost, good corrosion resistance, and high mechanical strength, suitable for general ventilation and air conditioning systems. Stainless steel spiral ducts (such as 304, 316L) have excellent corrosion resistance and hygiene performance, suitable for harsh environments such as food processing, pharmaceutical manufacturing, and chemical plants. Aluminum spiral ducts are lightweight, easy to install, and have good thermal conductivity, suitable for occasions with high requirements for weight reduction, such as airports and high-rise buildings. The material thickness of spiral ducts is usually 0.5~1.2mm, which can be adjusted according to the working pressure and application scenario to ensure the structural strength and service life of the duct.

3. Core Advantages of Spiral Ducts as a Modern Ventilation System Choice

Compared with traditional rectangular ducts and other duct types, spiral ducts have obvious comprehensive advantages in performance, installation, energy conservation, and maintenance, which are the core reasons for their becoming the preferred choice of modern ventilation systems. The specific advantages are analyzed in detail as follows:

3.1 Excellent Air Tightness and Reduced Energy Consumption

Air tightness is one of the key performance indicators of air ducts, which directly affects the ventilation efficiency and energy consumption of the system. Spiral ducts adopt a continuous spiral locking structure, and the joint between the duct wall and the duct section is sealed with professional sealants, which has excellent air tightness. The air leakage rate of spiral ducts is usually less than 2% (in line with Class A air tightness requirements of GB 50243-2016), which is far lower than that of traditional rectangular ducts (air leakage rate is usually 5~8%). The good air tightness can effectively reduce the loss of air volume, reduce the load of the fan, and further achieve energy-saving effects. Practice shows that compared with traditional rectangular ducts, spiral ducts can save 15~20% of energy consumption in the operation process.

3.2 High Structural Strength and Long Service Life

The circular cross-sectional structure of spiral ducts and the spiral locking design of the duct wall make the duct have high structural rigidity and mechanical strength. The spiral duct can withstand a working pressure of up to 2500Pa, which is suitable for high-pressure ventilation systems. At the same time, the circular structure is not easy to accumulate dust and dirt, reducing the corrosion caused by dust accumulation. The surface of the duct (especially galvanized steel and stainless steel ducts) has good corrosion resistance, which can effectively resist the erosion of humid air, chemical gases, and other corrosive media. Under normal use and regular maintenance, the service life of spiral ducts can reach 20~30 years, which is 1.5~2 times that of traditional rectangular ducts.

3.3 Low Air Resistance and High Ventilation Efficiency

The inner surface of spiral ducts is smooth, and the circular cross-section has uniform air flow distribution, which can effectively reduce air resistance. The air resistance coefficient of spiral ducts is about 0.02~0.03, which is lower than that of rectangular ducts (0.04~0.05). The low air resistance not only improves the ventilation efficiency of the system but also reduces the noise generated by air flow. In addition, the spiral structure of the duct wall can form a spiral air flow inside the duct, which enhances the heat exchange effect between the air and the duct wall, and further improves the energy efficiency of the ventilation system. For large-air-volume ventilation systems, the use of spiral ducts can reduce the diameter of the duct under the same air volume, saving installation space and material costs.

3.4 Convenient Installation and Short Construction Period

Spiral ducts have the advantages of light weight, long single-section length, and simple connection method, which greatly simplifies the installation process and shortens the construction period. The weight of spiral ducts is about 30~50% lighter than that of traditional rectangular ducts of the same specification, which reduces the load on the building structure and the difficulty of hoisting. The single-section length of spiral ducts can be up to 12m, which reduces the number of joints between duct sections by 60~70% compared with rectangular ducts, and the connection between duct sections adopts flange connection or quick-connect joints, which is fast and convenient. Practice shows that the installation efficiency of spiral ducts is 2~3 times that of traditional rectangular ducts, which can effectively shorten the construction period and reduce construction costs.

3.5 Flexible Layout and Space Saving

The circular cross-section of spiral ducts has good flexibility in layout, which can be easily arranged in narrow spaces such as ceilings, wall cavities, and equipment rooms. Compared with rectangular ducts, which have strict requirements on installation space due to their corner structures, spiral ducts can be bent and turned flexibly, adapting to the complex layout of modern buildings. In addition, the circular structure of spiral ducts has a smaller cross-sectional area under the same air volume, which can save installation space and improve the utilization rate of building space. This advantage is particularly obvious in high-rise buildings, commercial complexes, and other occasions with limited space.

3.6 Environmental Protection and Easy Maintenance

Spiral ducts are made of metal materials, which are non-toxic, harmless, and recyclable, in line with the concept of green environmental protection. The smooth inner surface of the duct is not easy to accumulate dust and bacteria, which is convenient for cleaning and maintenance. For ventilation systems with high hygiene requirements (such as hospitals, food processing plants), spiral ducts can be cleaned regularly with professional equipment to ensure indoor air quality. In addition, the structural stability of spiral ducts is good, and there is no need for frequent maintenance during use, which reduces maintenance costs and workload.

4. Comprehensive Analysis of Spiral Duct Application Scenarios

Due to their excellent comprehensive performance, spiral ducts are widely used in various fields of modern ventilation systems, covering commercial buildings, industrial production, public facilities, and residential buildings. According to the different requirements of application environments and performance, the selection of spiral duct materials, specifications, and installation methods is also different. The specific application scenarios are analyzed in detail as follows:

4.1 Commercial Buildings

Commercial buildings (such as shopping malls, office buildings, hotels, and supermarkets) have the characteristics of large space, high population density, and high requirements for indoor air quality and comfort. Spiral ducts are widely used in the ventilation and air conditioning systems of these buildings due to their excellent air tightness, low noise, and flexible layout. In shopping malls and supermarkets, spiral ducts are used to supply fresh air and exhaust waste gas, ensuring the circulation of indoor air and improving the shopping experience of customers. In office buildings and hotels, spiral ducts are combined with central air conditioning systems to realize the adjustment of indoor temperature and humidity, providing a comfortable working and living environment. For high-end commercial buildings, stainless steel or aluminum spiral ducts are usually selected to improve the appearance quality and corrosion resistance of the duct.

4.2 Industrial Workshops

Industrial workshops (such as mechanical processing, chemical industry, food processing, and pharmaceutical manufacturing) have complex working environments, which may involve high temperature, high humidity, corrosive gases, and dust. Spiral ducts have high structural strength, good corrosion resistance, and low air resistance, which are suitable for the ventilation needs of industrial workshops. In mechanical processing workshops, spiral ducts are used to exhaust dust and waste gas generated during processing, ensuring the health of workers and the normal operation of equipment. In chemical and pharmaceutical workshops, stainless steel spiral ducts are selected to resist the erosion of corrosive media and ensure the hygiene and safety of the production environment. In food processing workshops, spiral ducts with high air tightness and smooth inner surfaces are used to avoid dust accumulation and bacterial growth, meeting the food hygiene standards.

4.3 Public Facilities

Public facilities (such as airports, stations, hospitals, schools, and gymnasiums) have large space, high traffic volume, and strict requirements for ventilation efficiency and air quality. Spiral ducts are an ideal choice for the ventilation systems of these facilities due to their high ventilation efficiency, low noise, and convenient installation. In airports and stations, spiral ducts are used to supply fresh air to the waiting halls and corridors, ensuring the circulation of indoor air and improving the comfort of passengers. In hospitals, spiral ducts are used in the ventilation systems of operating rooms, wards, and laboratories, requiring high air tightness and hygiene performance to prevent cross-infection. In schools and gymnasiums, spiral ducts are used to exhaust harmful gases and supply fresh air, creating a healthy and comfortable learning and sports environment.

4.4 Residential Buildings

With the improvement of people's living standards, the requirements for indoor air quality of residential buildings are increasing. Spiral ducts are gradually applied in the ventilation systems of residential buildings, especially in high-rise residential buildings and villas. In high-rise residential buildings, spiral ducts are used for centralized fresh air supply and kitchen and bathroom exhaust, ensuring the indoor air quality and reducing the impact of noise on residents. The flexible layout of spiral ducts can adapt to the narrow space of residential buildings, avoiding the occupation of effective living space. In villas, spiral ducts are combined with central air conditioning systems to realize the adjustment of indoor temperature and humidity, improving the comfort of living. Galvanized steel spiral ducts are usually selected for residential buildings due to their low cost and good performance.

4.5 Special Occasions

In addition to the above application scenarios, spiral ducts are also widely used in some special occasions, such as underground garages, tunnels, and clean rooms. In underground garages, spiral ducts are used to exhaust exhaust gas from vehicles and supply fresh air, ensuring the safety of the garage environment. In tunnels, spiral ducts are used for ventilation to reduce the concentration of harmful gases and ensure the safety of traffic. In clean rooms (such as electronic factories, pharmaceutical clean rooms), spiral ducts with high air tightness, smooth inner surfaces, and corrosion resistance are used to ensure the cleanliness level of the clean room.

5. Key Technical Points of Spiral Duct Selection, Installation, and Maintenance

To give full play to the advantages of spiral ducts and ensure the stable and efficient operation of the ventilation system, it is necessary to strictly grasp the key technical points of spiral duct selection, installation, and maintenance, and comply with relevant standards and specifications.

5.1 Selection of Spiral Ducts

- Material Selection: The material of spiral ducts shall be selected according to the application environment and performance requirements. For general ventilation systems, galvanized steel spiral ducts are preferred; for corrosive environments, stainless steel spiral ducts are selected; for occasions with high weight reduction requirements, aluminum spiral ducts are selected. The material thickness shall be determined according to the working pressure of the duct: for low-pressure ducts (≤500Pa), the thickness shall not be less than 0.5mm; for medium-pressure ducts (500~1500Pa), the thickness shall not be less than 0.7mm; for high-pressure ducts (>1500Pa), the thickness shall not be less than 1.0mm.

- Specification Selection: The diameter of spiral ducts shall be calculated according to the design air volume and air velocity. The recommended air velocity for spiral ducts is 3~12m/s: for fresh air ducts, the air velocity is 3~8m/s; for exhaust ducts, the air velocity is 6~12m/s. The diameter of the duct shall be selected to ensure that the air velocity is within the reasonable range, avoiding excessive energy consumption or insufficient ventilation.

- Air Tightness Level Selection: According to the requirements of the ventilation system, select the appropriate air tightness level. For general ventilation systems, Class B air tightness is sufficient; for high-demand systems (such as clean rooms, hospitals), Class A air tightness shall be selected.

5.2 Installation of Spiral Ducts

- Pre-Installation Preparation: Before installation, review the design drawings, conduct on-site surveys, and check whether the installation space, reserved holes, and structural size are consistent with the design. Inspect the spiral ducts for deformation, damage, and air tightness, and ensure that the materials and specifications meet the design requirements. Prepare the required installation equipment and tools, such as lifting equipment, measuring tools, and sealants.

- Support and Hanger Installation: The support and hanger of spiral ducts shall be made of galvanized steel or stainless steel, with sufficient load-bearing capacity. The spacing of support and hanger for horizontal ducts shall not exceed 3m; for vertical ducts, the hanger shall be installed at each floor, and the spacing shall not exceed 3m. The support and hanger shall be installed on the building load-bearing structure, and a buffer pad shall be installed between the hanger and the duct to reduce vibration and prevent damage to the duct.

- Duct Connection: The connection between spiral duct sections shall adopt flange connection or quick-connect joints. The flange shall be flat, and the bolt holes shall be evenly distributed. The joint shall be sealed with professional sealants to ensure air tightness. The connection between the duct and the fan, valve, and other equipment shall be equipped with flexible joints to reduce vibration and noise transmission.

- Air Tightness Testing: After the installation of the duct system is completed, air tightness testing shall be carried out. The testing method shall comply with GB 50243-2016, and the air leakage rate shall meet the selected air tightness level. If the leakage rate exceeds the standard, the leakage points shall be found and repaired in time.

5.3 Maintenance of Spiral Ducts

- Regular Cleaning: According to the application environment, regularly clean the inner surface of the spiral duct to remove dust, dirt, and other impurities, ensuring the smoothness of the duct and the quality of indoor air. For ventilation systems with high hygiene requirements, the cleaning cycle shall not exceed 6 months; for general ventilation systems, the cleaning cycle shall not exceed 12 months.

- Regular Inspection: Regularly inspect the structural integrity of the spiral duct, including the duct wall, joints, and support and hanger. Check for deformation, corrosion, and air leakage, and repair or replace the damaged parts in time. For outdoor ducts, check the corrosion and aging of the surface, and take anti-corrosion and protective measures if necessary.

- Fan and Valve Maintenance: Regularly maintain the fan, valve, and other equipment connected to the spiral duct, check the operation status of the equipment, and ensure the stable operation of the entire ventilation system. The fan shall be lubricated regularly, and the valve shall be checked for flexibility and sealing performance.

6. Comparison Between Spiral Ducts and Traditional Rectangular Ducts

To further highlight the advantages of spiral ducts as the core choice of modern ventilation systems, this section compares spiral ducts with traditional rectangular ducts in terms of performance, fabrication, installation, and cost, as shown in the following table:

Comparison Index

Spiral Ducts

Traditional Rectangular Ducts

Air Tightness

Excellent, air leakage rate ≤2% (Class A/B)

Poor, air leakage rate 5~8%

Structural Strength

High, strong pressure resistance, not easy to deform

Low, easy to deform at corners

Air Resistance

Low, air resistance coefficient 0.02~0.03

High, air resistance coefficient 0.04~0.05

Installation Efficiency

High, 2~3 times that of rectangular ducts

Low, complex fabrication and connection

Space Utilization

High, circular structure, flexible layout, space-saving

Low, rectangular structure, large space occupation

Service Life

20~30 years

10~15 years

Energy Consumption

Low, energy-saving 15~20%

High, high energy loss

Maintenance Cost

Low, easy to clean and maintain

High, frequent maintenance required

It can be seen from the comparison that spiral ducts have obvious advantages over traditional rectangular ducts in all aspects, especially in air tightness, structural strength, energy conservation, and installation efficiency, which fully shows that spiral ducts are more suitable for the needs of modern ventilation systems.

7. Compliance with Relevant Standards and Codes

The selection, fabrication, installation, and maintenance of spiral ducts must comply with relevant international standards, national codes, and industry specifications to ensure the quality and safety of the ventilation system. The main relevant standards and codes are as follows:

- International Standards: ASTM E1592 (Standard Specification for Spiral Round Ducts), ISO 16975 (Ventilation for Buildings - Performance Requirements for Ventilation Systems), EN 12237 (Ventilation for Buildings - Ductwork - Construction and Installation).

- National Codes: GB 50243-2016 (Code for Construction and Acceptance of Ventilation and Air Conditioning Engineering), GB/T 19516-2019 (Spiral Ducts for Ventilation and Air Conditioning), GB 50016-2014 (Code for Fire Protection Design of Buildings), GB 50368-2005 (Code for Design of Residential Buildings).

- Industry Specifications: JGJ/T 141-2017 (Technical Specification for Installation of Ventilation and Air Conditioning Ducts), CECS 207-2006 (Technical Specification for FRP Ventilation Ducts in Buildings), HG/T 20696 (Code for Construction and Acceptance of Stainless Steel Piping Engineering).

In engineering practice, the application of spiral ducts shall be based on the above standards and codes, combined with the specific conditions of the project, to ensure that all technical indicators meet the requirements. At the same time, regular inspection and acceptance shall be carried out to ensure the quality of the project.

8. Practical Engineering Case Analysis

To verify the application effect of spiral ducts in modern ventilation systems, this section selects a large-scale commercial complex project for case analysis.

8.1 Project Overview

A large-scale commercial complex with a total construction area of 150,000㎡, including shopping malls, office buildings, hotels, and catering areas. The project requires a high-efficiency, energy-saving, and low-noise ventilation system to ensure the indoor air quality and comfort of each functional area. The total design air volume of the ventilation system is 500,000m³/h, including fresh air supply system, exhaust system, and air conditioning ventilation system. The working pressure of the duct system is 1000Pa (medium pressure), and the design service life is 25 years.

8.2 Implementation Scheme

- Duct Selection: According to the project requirements, galvanized steel spiral ducts are selected for the general ventilation system, with a material thickness of 0.7mm (medium pressure). The diameter of the duct is 300~1200mm, and the air velocity is controlled at 5~10m/s. For the ventilation system of the hotel and catering area, stainless steel spiral ducts (304 grade) are selected to improve corrosion resistance and hygiene performance. The air tightness level of the duct system is Class B, ensuring the air leakage rate ≤5%.

- Fabrication and Installation: The spiral ducts are fabricated by automated spiral forming machines, with a single-section length of 10m, reducing the number of joints. The support and hanger are made of galvanized steel, installed on the building beams, with a spacing of 2.5m. The connection between duct sections adopts flange connection, and the joint is sealed with high-temperature resistant sealants. The connection between the duct and the fan is equipped with stainless steel bellows flexible joints to reduce vibration and noise. After installation, air tightness testing is carried out, and the average air leakage rate is 2.3%, meeting the Class B requirement.

- Maintenance Plan: A regular maintenance plan is formulated, including cleaning the inner surface of the duct every 6 months, inspecting the duct structure and joints every 12 months, and maintaining the fan and valve every 3 months. This ensures the stable operation of the ventilation system.

8.3 Application Effect

After the completion of the project, the spiral duct system operates stably. The air tightness is good, and the air volume loss is small, ensuring the indoor air quality and comfort of each functional area. The low air resistance of the spiral duct reduces the load of the fan, and the energy consumption of the ventilation system is 18% lower than that of the traditional rectangular duct system. The installation period of the spiral duct is 45 days, which is 30 days shorter than that of the traditional rectangular duct. After 2 years of operation, the duct system has no deformation, corrosion, or air leakage, and the maintenance cost is only 15% of that of the traditional duct system. The project has achieved good economic and social benefits, verifying the rationality and applicability of spiral ducts as the core choice of modern ventilation systems.

9. Conclusion

As a new type of air duct with advanced technology and excellent performance, spiral ducts have become the core choice of modern ventilation systems due to their advantages of excellent air tightness, high structural strength, low energy consumption, convenient installation, and flexible layout. Compared with traditional rectangular ducts, spiral ducts have obvious comprehensive advantages in performance, installation, and maintenance, which can effectively improve the operational efficiency of the ventilation system, reduce energy consumption, and extend the service life of the system.

Spiral ducts are widely used in commercial buildings, industrial workshops, public facilities, residential buildings, and other fields, and can adapt to different application environments and performance requirements by selecting different materials and specifications. In engineering practice, it is necessary to strictly grasp the key technical points of spiral duct selection, installation, and maintenance, comply with relevant standards and codes, and give full play to the advantages of spiral ducts.

With the continuous development of ventilation and air conditioning technology and the increasing stringency of energy conservation and environmental protection standards, the application of spiral ducts will become more widespread. In the future, with the continuous improvement of processing technology and the development of new materials, spiral ducts will tend to be more intelligent, energy-saving, and environmentally friendly, providing stronger support for the construction of high-performance modern ventilation systems. This paper systematically analyzes the advantages and applications of spiral ducts, combines practical engineering cases to verify their application effect, and provides practical technical guidance for relevant practitioners, hoping to promote the standardized and professional application of spiral ducts and contribute to the sustainable development of the ventilation and air conditioning industry.
